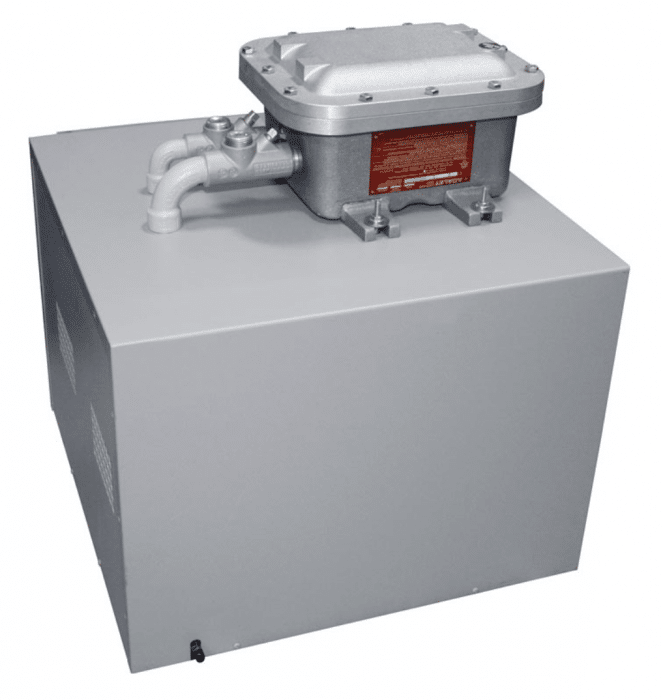

IQ3000TXP2

Class I, Division 2, Groups B, C, and D Hazardous Locations – UL Listed

The UL certified for Groups B, C, and D Hazardous Locations T Series Class I Division 2 takes what the General-Purpose T Series from Ice Qube has to offer and turns it into a Top Mount Hazardous Locations unit. Ice Qube’s exclusive use of rotary compressors allow us to manufacture the smallest, lightest weight, most energy efficient Top Mount Class I Division 2 cooling solutions in the industry.

The T Series Class I Division 2 is ideal for applications that require air flow from the top of the application utilizing the natural characteristics of hot and cold air. Naturally hot air rises and cold air sinks. This natural air flow allows for the T Series Class I Division 2 to be more efficient and not take up valuable space on the side of your application where other critical components may be. The T Series Class I Division 2 ranges from 3000-8000 Btu/h (879-2345 Watts) of closed-loop cooling capacity and 12.06”-15.06” (305.82-382.52mm) of mounting height.

Standard Features

• Groups B, C, and D Hazardous Locations Class I Division 2
• UL Certified
• EAC Certified
• SASO Certified
• RoHS Compliant
• REACH Compliant
• 12.06”-15.06” (305.82-382.52mm) of mounting height
• 3000-8000 Btu/h (879-2345 Watts) of closed-loop cooling capacity
• Closed-loop cooling to protect your application and increase efficiency
• NEMA 7 enclosure with integrated fire path to protect arcing and sparking components
• Maintains NEMA type 12, 3R, 4, or 4X integrity of your enclosure
• Environment friendly HFC refrigerant
• Programmable temperatures
• Maintains a purged environment if your application is suited with one
• Does not require purge protection
• Easy installation
• Indoor and outdoor use
• Powder coated durable 16-gauge welded steel construction
• Efficient, quiet, and long-lasting rotary compressor
• Easy pull-out, cleanable, reusable electrostatic 10-micron filter
• Space saving aesthetic cabinet design
• Certified by independent certification agencies
• In-house tested via Ice Qube’s testing facilities
• Engineered for optimal engineering efficiency in enclosure cooling

Options & Accessories

• Custom finishes
• 304 or 316 Stainless Steel (includes NEMA 4X Package)
• Low Ambient (LA)
• Easy pull-out, cleanable, reusable electrostatic 4-micron filter
• CP3 Total Corrosive E-Coating (CP3)
• 120V 60Hz
• 230V 60Hz
• Telcordia GR-487 Testing (Salt Fog & Wind Driven Rain) Available
• Available in General-Purpose
