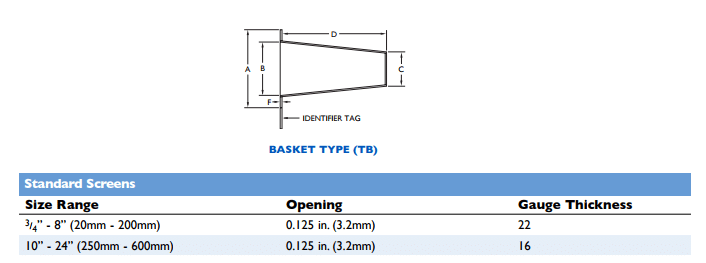

Basket Type (TB)

Design Features:

  • Standard sizes from 3/ 4” – 48”.
  • Used primarily for new pipeline start-up or where solid loading is minimal.
  • Filtration as fine as 40 microns available.
  • Available in conical, basket and plate configurations.
  • Available flat faced, raised face or RTJ with or without face serrations.
  • All 304 SS construction is standard. Construction in other materials is available (i.e carbon steel, monel, hastelloy, titanium, etc.).
  • May be installed in horizontal or vertical pipelines with cone pointed upstream or downstream.
  • Strainer size and pressure rating is stamped on handle.
Size
(in / mm)		 A O.D.
(in / mm)
150/300#		 A O.D.
(in / mm)
600#		 A O.D.
(in / mm)
900#		 A O.D.
(in / mm)
1500#		 B I.D.
(in / mm)		 C
(in / mm)		 D (Basket Length)
(in / mm)
100%		 D (Basket Length)
(in / mm)
150%		 D (Basket Length)
(in / mm)
200%		 D (Basket Length)
(in / mm)
300%		 F2
(in / mm)		 Weight
(lb / kg)
3/ 4” – 20 2.13 – 54 2.50″ – 64 2.63″ – 67 2.63″ – 67 0.63″ – 16 0.31″ – 8 0.75″ – 19 1.13″ – 29 1.50″ – 38 2.25″ – 57 0.13″ – 3 0.5 – 0.2
1” – 25 2.50″ – 64 2.75″ – 70 3.00″ – 76 3.00″ – 76 0.75″ – 19 0.38″ – 10 1.13″ – 29 1.69″ – 43 2.25″ – 57 3.38″ – 86 0.13″ – 3 0.5 – 0.2
1 1/2″ – 40 3.25″ – 83 3.63″ – 92 3.75″ – 95 3.75″ – 95 1.25″ – 32 0.63″ – 16 1.50″ – 38 2.25″ – 57 3.00″ – 76 4.50″ – 114 0.13″ – 3 0.5 – 0.2
2” – 50 4.00″ – 102 4.25″ – 108 5.50″ – 140 5.50″ – 140 1.75″ – 44 0.88″ – 22 2.00″ – 51 3.00″ – 76 4.00″ – 102 6.00″ – 152 0.13″ – 3 0.5 – 0.2
2 1/2″ – 65 4.75″ – 121 5.00″ – 127 6.38″ – 162 6.38″ – 162 2.25″ – 57 1.13″ – 29 2.19″ – 56 3.37″ – 86 4.50″ – 114 6.75″ – 171 0.13″ – 3 1 – 0.5
3” – 80 5.25″ – 133 5.75″ – 146 6.50″ – 165 6.75″ – 171 2.75″ – 70 1.38″ – 35 2.75″ – 70 4.25″ – 1.08 5.69″ – 145 8.50″ – 216 0.13″ – 3 1 – 0.5
4” – 100 6.75″ – 171 7.50″ – 191 8.00″ – 203 8.13″ – 206 3.75″ – 95 1.88″ – 48 3.50″ – 89 5.32″ – 13.5 7.19″ – 183 11.00″ – 279 0.13″ – 3 2 – 0.9
5” – 125 7.63″ – 194 9.38″ – 238 9.63″ – 244 9.88″ – 251 4.63″ – 117 2.31″ – 59 4.50″ – 114 6.75″ – 171 9.13″ – 232 14.00″ – 356 0.13″ – 3 2 – 0.9
6” – 150 8.63″ – 219 10.37″ – 263 11.25″ – 286 11.00″ – 279 5.38″ – 137 2.69″ – 68 5.50″ – 140 8.50″ – 216 11.37″ – 289 17.00″ – 432 0.13″ – 3 3 – 1.4
8” – 200 10.87″ – 276 12.50″ – 318 14.00″ – 356 13.75″ – 349 7.38″ – 187 3.69″ – 94 7.00″ – 178 10.69″ – 272 15.00″ – 381 22.00″ – 559 0.13″ – 3 5 – 2.3
10” – 250 13.25″ – 337 15.63″ – 397 17.00″ – 432 17.00″ – 432 9.38″ – 238 4.69″ – 119 8.63″ – 219 14.00″ – 356 18.00″ – 457 27.00″ – 686 0.13″ – 3 7 – 3.2
12” – 300 16.00″ – 406 17.87″ – 454 19.50″ – 495 20.37″ – 517 11.00″ – 279 5.50″ – 140 10.50″ – 267 17.00″ – 432 22.00″ – 559 33.00″ – 838 0.13″ – 3 11 – 5.0
14” – 350 17.37″ – 441 19.00″ – 483 20.37″ – 517 22.62″ – 575 12.25″ – 311 6.13″ – 156 11.50″ – 292 18.00″ – 457 24.00″ – 610 36.00″ – 914 0.13″ – 3 12 – 5.4
16” – 400 20.12″ – 511 21.87″ – 555 22.50″ – 572 25.13″ – 638 14.00″ – 356 7.00″ – 178 14.00″ – 356 21.00″ – 533 28.00″ – 711 42.00″ – 1067 0.13″ – 3 16 – 7.3
18” – 450 21.25″ – 540 23.75″ – 603 25.00″ – 635 27.63″ – 702 15.75″ – 400 7.88″ – 200 16.00″ – 406 24.00″ – 610 32.00″ – 813 47.00″ – 1194 0.13″ – 3 20 – 9.1
20” – 500 23.50″ – 597 26.62″ – 676 27.38″ – 695 29.63″ – 753 17.50″ – 445 8.75″ – 222 17.00″ – 432 27.00″ – 686 35.00″ – 889 53.00″ – 1346 0.13″ – 3 26 – 11.8
24” – 600 27.87″ – 708 30.87″ – 784 32.88″ – 835 35.38″ – 899 21.25″ – 540 10.63″ – 270 21.00″ – 533 32.00″ – 813 42.00″ – 1067 64.00″ – 1626 0.13″ – 3 30 – 13.6
