IQ20000EVZ2

IIC ATEX/IECEx/AEx/EX – Third Party Certified for Hazardous Locations

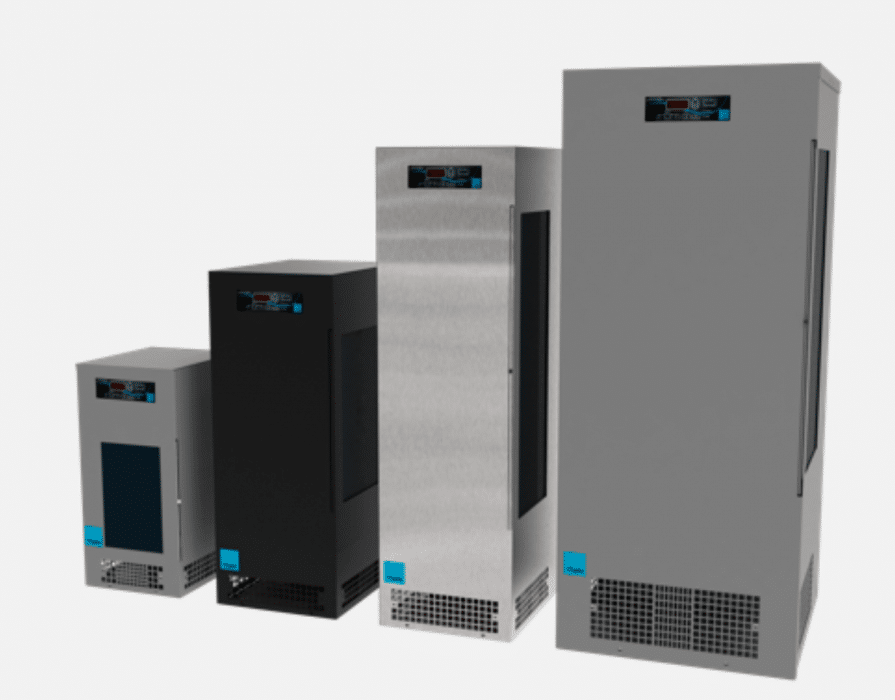

The next evolution of exclusive cooling solutions and cutting-edge design is here. The ATEX/IECEx/AEx/EX Certified Hazardous Locations EV Zone 2-Class I Zone 2 is known to the industry as the Evolution Series, taking Ice Qube’s product line to new levels. Just as the V Series did back in 1995, the EV Series Zone 2-Class I Zone 2 is truly an engineering marvel for the industry. The EV Series Zone 2-Class I Zone 2 utilizes Ice Qube’s new Subpanel Airflow Technology (SAFT), state of the art solid-state technology, hermetically sealed components, Vibration Reduction Longevity Technology (VRLT), centrifugal fans, higher airflow rates, and rotary compressors to optimize efficiency, durability, and reliability.

Ice Qube’s Engineering team eliminated the traditional NEMA 7 enclosure that housed arcing and sparking components. The elimination of the NEMA 7 enclosure allowed Ice Qube to reduce the size of the unit, increase efficiency, increase longevity, increase durability, and reduce cost. The EV Series is offered in 1000-20000 Btu/h (293-5861 Watts) of closed-cooling capacity and mounting widths ranging from 9.85”-18” (250-459mm). The new EV Series Zone 2 has the industry’s highest operating temperature of 140°F/60°C to endure the harshest of environments worldwide.

Standard Features

  • Zone 2-Class I Zone 2 ATEX/IECEx/AEx/EX Certified
  • SASO Certified
  • RoHS Compliant
  • REACH Compliant
  • 9.85”-18” (250-459mm) of mounting width
  • 1000-20000 Btu/h (293-5861 Watts) of closed-loop cooling capacity
  • Closed-loop cooling to protect your application and increase efficiency
  • Operating temperature from -40° F/-40° C to the industry’s highest of 140° F/60° C
  • Maintains IP66 integrity of your enclosure
  • Maintains NEMA type 12, 3R, 4, or 4X integrity of your enclosure
  • Subpanel Airflow Technology (SAFT)
  • Vibration Reduction Longevity Technology (VRLT)
  • Environment friendly HFC refrigerant
  • Centrifugal fans
  • Higher airflow rates
  • Solid state technology to eliminate arcing and sparking components
  • Hermetically sealed components to protect arcing and sparking components
  • Built in condensate eliminator
  • Easy installation
  • Indoor and outdoor use
  • Maintains a purged environment if your application is suited with one
  • Does not require purge protection
  • Warm enclosure air is drawn in near the top of the unit, while conditioned air is discharged near the bottom

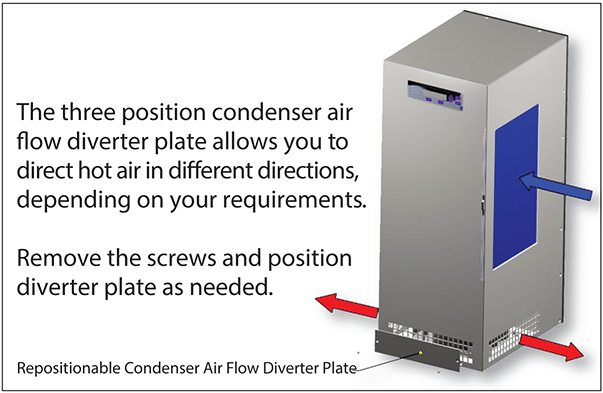

  • Three position condenser air flow with the option to direct hot discharge air in different directions
  • Standard Digital Controller
  • Programmable temperatures and alarm
  • Controller can be installed on either front or rear of the unit (inside or outside of enclosure)
  • Can be used with or without purge system
  • Efficient, quiet, and long-lasting rotary compressor
  • Powder coat durable 16-gauge welded steel construction
  • Easy pull-out, cleanable, reusable electrostatic 10-micron filter
  • In-house tested via Ice Qube’s testing facilities
  • Engineered for optimal engineering efficiency in enclosure cooling
  • Minimal visible fasteners

Options & Accessories

  • Custom finishes
  • 304 or 316 Stainless Steel (includes NEMA 4X Package)
  • Low Ambient (LA)
  • Alarm Output (XO3)
  • Easy pull-out, cleanable, reusable electrostatic 4-micron filter
  • CP3 Total Corrosive E-Coating (CP3)
  • Built in purge fitting option.  (This 1/4″ [6.35MM] OD push to connect fitting is for convenience only and is NOT REQUIRED as a protective method. All components are non-ignition source components and do not require purge protection from any source.)
  • 120V 60Hz
  • 220/230V 50/60Hz
  • 240V 50/60Hz
  • 400V 50/60Hz
  • 440V 50/60Hz
  • 480V 50/60Hz
  • Telcordia GR-487 Testing (Salt Fog & Wind Driven Rain) Available
  • Available in Class I Division 2
  • Available in General-Purpose
IQ20000EVZ2
Volts/Hz 220/50 230/60 240/50 240/60 400/50 400/60 440/50 440/60 480/50 480/60
Max Amps 16.96 16.40 15.27 15.35 8.70 8.67 9.12 8.88 8.64 8.36
BTU/Watts 22500 / 6594
Third Party Certified Yes
Max Temp °F/°C 140 / 60
Min Temp °F/°C -40 / -40
Weight (lbs/kg) 222 / 101 274 / 125
Dimensions H 44.06”(1119 mm) x W 18.09”(459mm) x D 20.00”(508mm)
