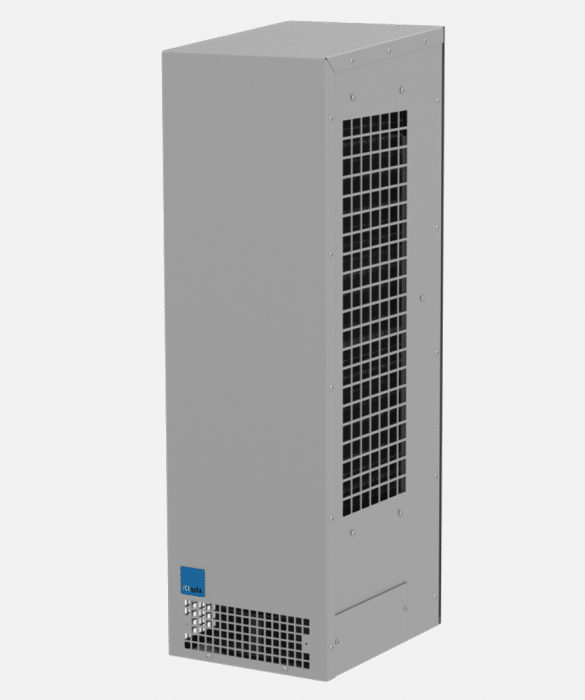

NEMA Type 12, 3R, 4, 4X – UL Listed

The ECO Series is designed for those projects and applications that require the most efficient and compact cooling solution on the market. The entire ECO Series line incorporates decades of experience that Ice Qube has learned through designing, engineering, and manufacturing industry-leading cooling solutions. The ECO Series is a UL Listed air conditioner taking our product line to new levels. The ECO Series utilizes Ice Qube’s Subpanel Airflow Technology (SAFT), Vibration Reduction Longevity Technology (VRLT), centrifugal fans, higher airflow rates, and rotary compressors to optimize efficiency, durability, and reliability.

The ECO Series currently ranges from 1000-6000 Btu/h (293-1905 Watts) of closed-loop cooling capacity with a mounting width from 9.76″ (248mm) to 11.36″ (288.54mm).

Standard Features

  • UL Listed for NEMA Type 12, 3R, 4, 4X
  • RoHS Compliant
  • REACH Compliant
  • 100% in-house factory tested to meet or exceed certification regulatory requirements
  • 9.76″ (248mm) to 11.36” (288.54mm) of mounting width
  • 1000-6000 Btu/h (293-1905 Watts) of closed-loop cooling capacity
  • Mounting cutout is backward compatible with EV Series
  • Closed-loop cooling to protect your application and increase efficiency
  • Operating temperature from -40° F/-40° C to 131° F/55° C
  • Subpanel Airflow Technology (SAFT)
  • Vibration Reduction Longevity Technology (VRLT)
  • Environment friendly and zero ozone-depleting HFC refrigerant
  • Filterless design
  • Sloped top for a compact design, washdown environments (wastewater/food/beverage/medical industry), and run-off
  • Centrifugal fans
  • Highest airflow rates
  • Maintains IP66 integrity of your enclosure
  • Maintains NEMA Type 12, 3R, 4, 4X integrity of your enclosure
  • Built-in condensate eliminator
  • Simplified cutout for easy and efficient installation
  • Indoor and outdoor use
  • Warm enclosure air is drawn in near the top of the unit, while conditioned air is discharged near the bottom
  • Two-position condenser airflow
  • Standard Digital Controller
  • Programmable temperatures and alarm
  • Efficient, quiet, and long-lasting rotary compressor, making these units the most efficient on the market
  • Durable 16-gauge steel construction
  • Engineered for optimal engineering efficiency in enclosure cooling
  • Minimal visible fasteners

Options & Accessories

  • Custom finishes
  • (304ss or 316ss) 304 or 316 Stainless Steel (includes NEMA 4X Package)
  • (126) 120V 60Hz
  • (225) 220/230V 50/60Hz
  • (CP3) CP3 Total Corrosive Nano E-Coating
  • (ETH) Ethernet Controller
  • (ETH XC) Ethernet Remote Control
  • (LA) Low Ambient
  • (XO3) Alarm Output
  • (FIL) Easy pull-out, cleanable, reusable electrostatic 10-micron filter to increase the longevity of the unit
  • (4MIC) Easy pull-out, cleanable, reusable electrostatic 4-micron filter
  • Telcordia GR-487 Testing (Salt Fog & Wind-Driven Rain)
Volts/Hz 120/60 220/50 230/60
Max Amps 21.9 10.8 10.9
BTU/Watts 12000 / 3517
UL Listed Yes
Internal Heat Options 500 / 1000 Watts
Max Temp °F/°C 131 / 55
Weight (lbs/kg) 132 / 59.9
Dimensions H 38.594”(980 mm)xW 11.240”(285mm)xD 14.417”(366mm)
